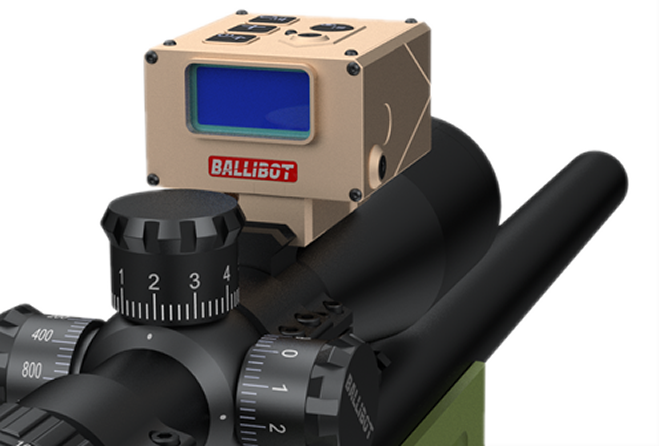

Introducing the new BALLIBOT® RangeMate Series of Rail Mounted laser rangefinding Ballistic Calculator, the basic model has a measuring range of 1,500 meters, while the elite model has a measuring range of 3,000 meters, and the onboard environmental sensors with an open-close cap for true real-time environmental condition reading. rigid aluminium body makes it stdurdy and lightweight, embedded 4DOF (degree of freedom) ballistic calculator with G1, G7 and GA drag functions, provide long-range shooting with quick, accurate ballistic corrections. Enabling you with point-and-shoot target solutions without ever coming off the gun. This
advanced, rail-mounted LRF Ballistic Calculator delivers key range, ballistic, and on-board Live Environmental Sensors, provides advanced ballistic information including distance, angle, wind direction with arrow pointer, wind speed, holdover value, reticle grids holdover at different rifle scope magnifications. And our patented Rifile scope Magnification and Turret Sensing system enable the scopes to have more advanced functions and abilities. Mounts to any picatinny-style rail or rings with a diving board mount.
KEY FEATURES:
- RangeMate 1500, Range 1500m / RangeMate 3000, Range 3000m
- RangeMate 1500, WaveLength 905nm / RangeMate 3000, WaveLength 1535nm
- RM 1500, Beam Divergence 3mrad / RM 3000, Beam Divergence 0.8mrad
- Embedded 4DOF (degree of freedom) ballistic calculator with G1, G7 and GA drag functions.
- Free downloadable BALLIBOT Ballistic App for your smartphone. iOS and Android are supported.
- Live Pressure, Temperature and Humidity sensors with open-close cap for real-time environmental inputs to the embedded ballistic calculator.
- Quick wind speed and direction input with wind direction arrow pointer display.
- Line of Sight ballistic holdover results in MIL or MOA.
- Quick scope magnification input.(Mag sensor not installed)
- Scope reticle grids holdover at different scope magnification power.
- Bluetooth 5.0 BLE for synchronizing up to 5 custom ballistic profiles between the free BALLIBOT Ballistic App and rangefinder. Smartphone no longer needed once a profile is uploaded.
- The simple 2 steps App setup to synchronize the rangefinder, minimum learning time is needed to use the App.
- Quick scanning technology provides 5 range updates per second and reports the last range result and holdover when ranging distant targets.
- Blue Tooth RC buttons
- 14500 battey for longer useage time
- Compact size
- Scope magnification auto input.(Mag sensor installed)
- Scope Elevation turret position auto input.(Turret sensor installed)
- Scope Elevation turret auto dialing.(Drive Module installed).

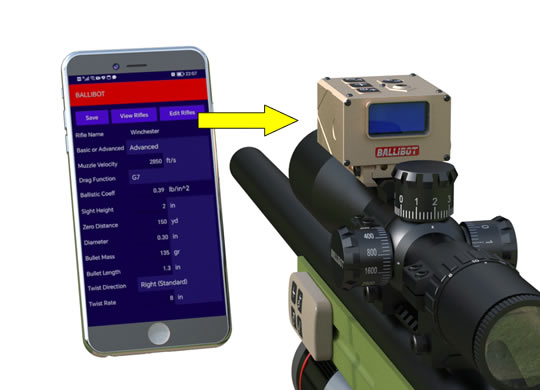

Quick Gun Profile Upload
Once uploaded, no need to use phone again5 Rifle and scope setups are stored in the BalliBot Ballistics APP, it can be quickly upload to the BalliRanger via Bluetooth connection.
BC Ballistics
G1 - G7 BC input, suitable for all types of projectiles: bullets, pellets even balls. Wide range of muzzle velocity: supersonics and subsonics.

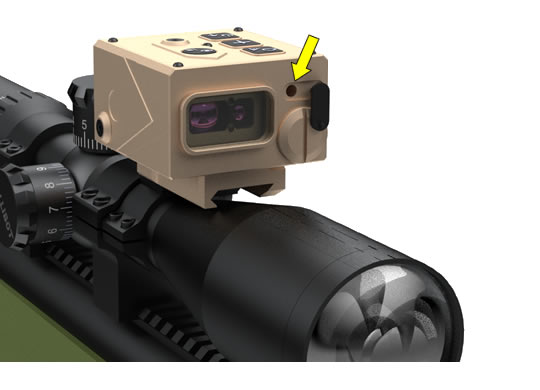

Live Weather Sensor
Only open & close sensor gate can instantly sample the fresh air the measure the LIVE Air Pressure, Temperature and Humidity for accurate ballistics calculation..

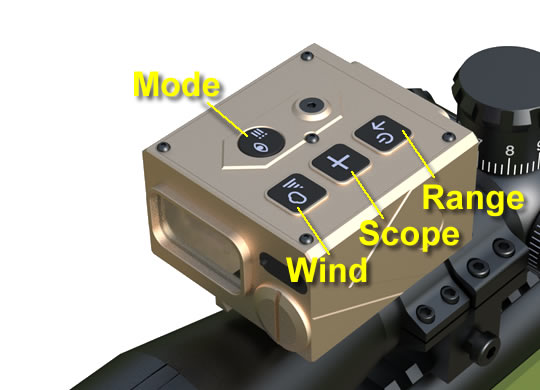

Wind Speed and Direction Iput
Ergonomically designed buttons operation and easy to read wind direction arrow display enable quick wind data input for windage ballsitics.
Scope Magnification Input
The true unit magnification power and current mag power of the scope can be quickly input through well designed buttons operation.
Reticle Ellevation & Windage
The ballistics holdover results can be converted into scope reticle ellevation and windage value at current mag with the previous step mag data input.

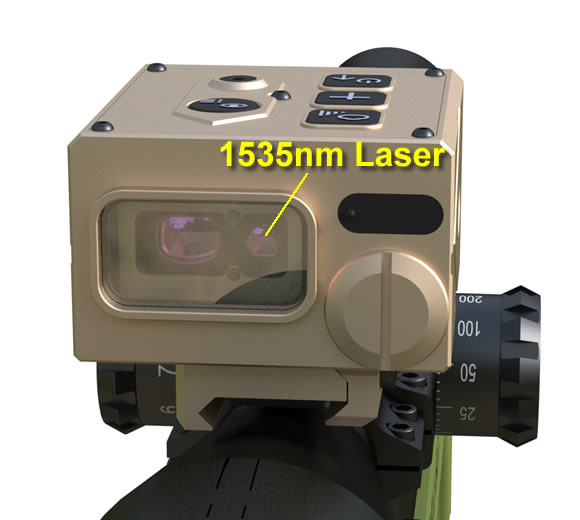

Stealth Laser
Wavelength 1535nm laser beam is not only invisible to human eyes, it is also invisable to most of the nigt vision devices, without giving away your presence during rangefinding.
Small Laser Beam Divergence
Most of the rangefinder laser beam is with 2~7mrad divergence angle, the smaller the angle, the more accurate it can detect small object further away, our rangefinder laser is with 0.8mrad, it has a 1.2m diameter light spot at 1500meter, can precisely detect deer sized object.

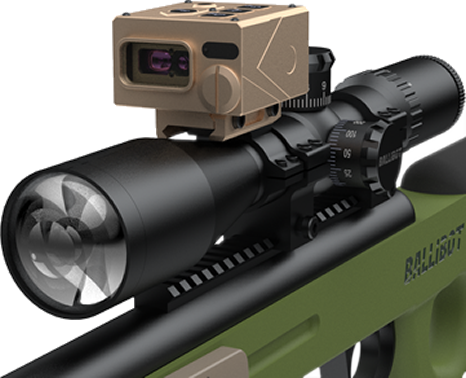

1500m / 3000m Types
We have 2 different Rangefinder module for the needs of different users, 1500m laser module is 905nm wavelength laser, 3.0mrad divergence angle, 1.8m diameter light spot at 600m like most of the rangefinders, with much lower costs. And 3000m laser module with 1535nm wavelength laser, 0.8mrad divergence angle, for elite users.
Magnification Sensor Module

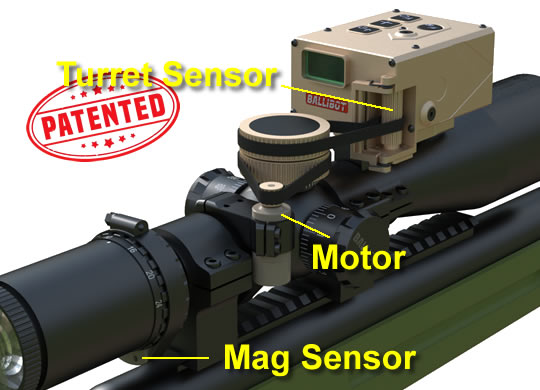

By adding our patented rifle scope Mag Sensor Module, it will sense the every turn of the Mag ring, and calculate the reticle grids holdover according to the mag position.
Turret Sensor Module
Adding our patented rifle scope Turret Sensor Module,
Turret Drive Module
The ballistics holdover results can be converted into scope reticle ellevation and windage value at current mag with the previous step mag data input.
Bluetooth Display
The built-in multi-end Bluetooth solution enables the RangeMate to have Bluetooth Display function, it can interact simultaneously with a third display, such as a VR goggle or our patented headsup device.
BalliBot Ballistic Calculator
Professional and not amateur4 DOF algorithm
Includes the bullet’s movement about its center of gravity and angle relative to its line of flight for greater accuracy.
3DOF & 4DOF Switchable
Advanced 4DOF mode for extreme long range projectiles, basic 3DOF mode for regular shooting and hunting.
5 gun profiles
It stores 5 gun and scope setup profiles for multi weapon system users, easy and convenient to switch devices.
G1 to G7 BC built-in
Ballistic Coefficient calculations of G1 standard and G7 long range bullet shapes, also the GA for airgun diabolo pellets.
BC Upload
Upload the Ballistic Coefficient input to all BalliBot hardwares such as laser rangefinders, avoid troublesome setups.
Hands free operation
Select a gun profile and upload to a Ballibot device once, then the phone is nolonger used for ballistic calculation.
RangeMate Rail Mounted LRF Ballistic Calculator Specs
| LASER RANGEFINDER | MODEL | RM 1500 / RM 3000 |
| RANGE | 1500m / 3000m | |
| DEER RANGE | 600m / 1500m | |
| BEAM DIVERGENCE | 3mrad / 0.8mrad | |
| ACCURACY | ±1m | LASER WAVELENGTH | 905nm / 1535nm |
| ELECTRONICS | DISPLAY TYPE | OLED |
| BATTERY | 14500 x 1 | |
| BLUETOOTH | YES | |
| BUTTONS | 4 | |
| BALLISTICS | APP GUN PROFILE UPLOAD | YES |
| WEATHER SENSOR | YES | |
| WIND SPEED INPUT | YES | |
| WIND DIRECTION INPUT | YES | |
| SCOPE MAG INPUT | YES | |
| BALLISTICS RESULTS | YES | |
| RETICLE CALCULATION | YES | |
| STRUCTURE | WATERPROOFING | IP-6 |
| WEIGHT | 00g | |
| DIMENSIONS | 78 x 59 x 48 (mm) |
