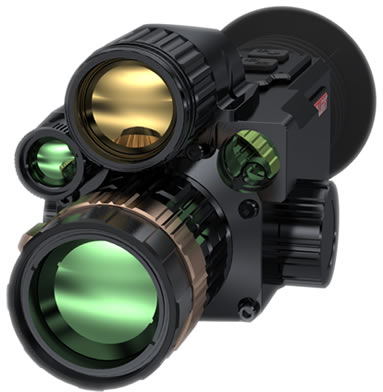

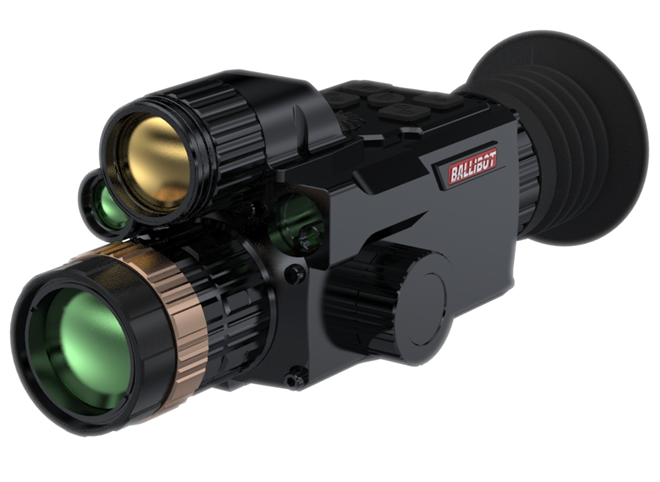

Introducing the new BALLIBOT® BalliMuta Ballistic Day and Night Optical scope, it is also A Ballistic Thermal and Optical Multispectral Digital Scope by adding an external thermal lens. Built-in Laser Rangefinder module and an embedded 4DOF (degree of freedom)professional ballistic calculator with G1, G7 and GA drag functions, onboard Bluetooth for synchronizing with a ballistic App for your iOS or Android smartphone. The fast wind data input and Dynamic Ballistic Reticle provides for an instant POI crosshair along with advanced information including distance, angle, wind direction with arrow pointer, wind speed, holdover value, reticle grids holdover at different scope magnification for precision applications. Multiple wireless connection enable video transmission to a third display and interact with other devices such as Ballibot Thermal Scouts in different environment conditions like darkness, fog, smoke, haze, snow and camouflage for patrolling and hunting, etc. It also interacts with all BALLIBOT thermal scouts such as the ScoutKing by receiving the target coordinates to the scope so the shooter can quickly locate the target position in darkness.
Developed for 24 hours operation under any weather and environmental conditions. BALLIBOT® BalliMuta Ballistic Thermal and Optical Scope is truly an amazing shapeshift mutator designed for enthusiasts and professionals who demand the best in optical precision and ballistic conveniency, it is a perfect tool for hunting and any outdoor adventure.
KEY FEATURES:
- 12μm 256×192 and 384×288 Thermal sensor (external thermal lens)
- 25mm objective lens (external thermal lens)
- Add on External Thermal Lens save upgrading costs
- 35mm diameter improved super clarity day and night optical object lens
- Built-in laser rangefinder (up to 1000 m)
- Built-in 6-axis accelerometer gyroscope (slope angle indication)
- Free downloadable BALLIBOT Ballistic App for your smartphone
- Quick wind speed and direction input with wind direction arrow pointer display
- Line of Sight ballistic holdover results in MIL or MOA
- Multiple reticle options
- One-shot “Freeze-Zeroing” function and precise zoom zeroing
- Trigger video recording
- Integrated Wi-Fi for video transmission and interacting with other devices
- Level Bubble UI provides a similar feel to the traditional scope
- Powered by one 21700 battery for lower costs of use (battery not included due to shipping regulations)
- Embedded 4DOF (degree of freedom) professional ballistic calculator with G1, G7 and GA drag functions, far superior than those amateur counterparts
- Bluetooth 5.0 BLE for synchronizing up to 5 custom ballistic profiles between the free BALLIBOT Ballistic App and rangefinder. Smartphone no longer needed once a profile is uploaded
- The simple 2 steps App setup to synchronize the rangefinder, minimum learning time is needed to use the App
- Dynamic POI (point of impact) crosshair from ballistic calculation and Scalable reticles (proportional to Zoom) – Balli Core engine make full use of the Ballistic Calculator by precisely indicate the holdover at any magnification power. With this level of precision, you'll make every shot count.
- Zoom wheel for smooth digital magnification
- One piece high strength 6061 aluminum body making for strength and rigidity
- 15x 33mm super large eyepiece lens 2" eye relief
- The 1024×768 OLEDoS display is one generation ahead of conventional AMOLED devices, it consumes less energy and has much higher shock resistance.
- Interacting with thermal scouts by receiving target coordinates
- Sending HD scope-cam video from scopes

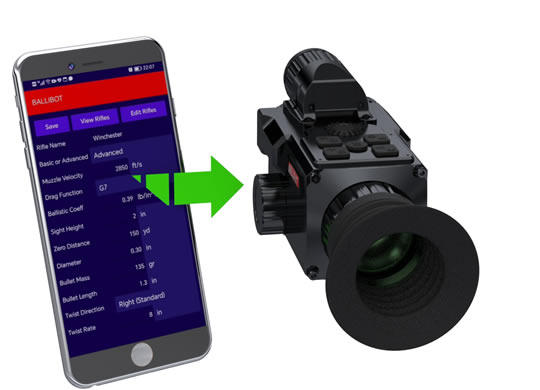

APP Rifle Profile Upload
Once uploaded, no need to use phone again5 Rifle and scope setups are stored in the BalliBot Ballistics APP, it can be quickly uploaded to the BalliTherm Thermal Scopes via Bluetooth connection.
Professional BC Ballistics
G1 - G7 BC input, suitable for all types of projectiles: bullets, pellets even balls. Wide range of muzzle velocity: supersonics and subsonics. far more superior than those amateur counterparts

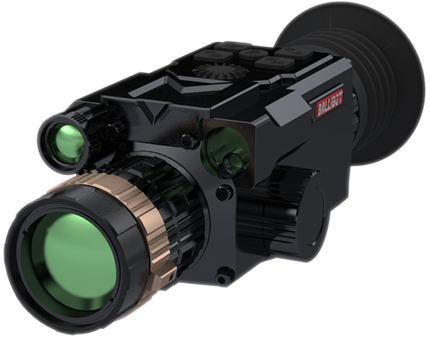

Super Clarity Optical Lens
The concept of optical object lens were evolving, early models were big for clarity, then the 25 to 30mm diameter for small size with the improvement in clarity, it sacrifice the aperture too much, by our testing, we found the 35mm diameter object lens are with the best balance between clarity and apurture, hence its low light capability.
Smallest IR Flash Light
The improved cooling system design makes its IR Flash Light powerful enough, while keep its diameter at 19mm

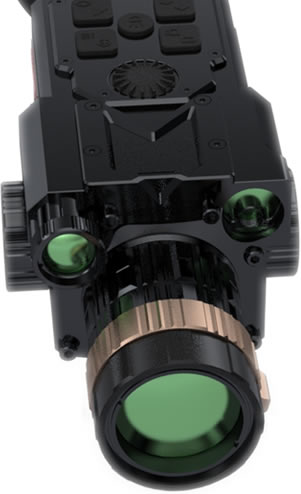

Magnification Wheel
Flat Magnification & Adjusting Wheel provides smooth and ergonomic operation.

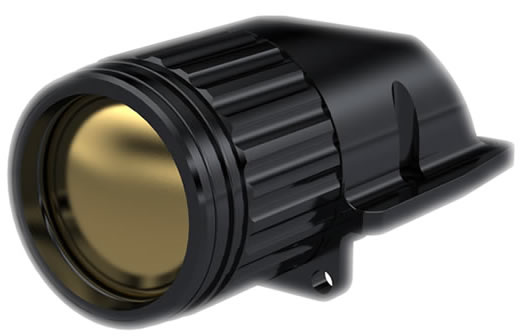

External Thermal Lens
External Thermal Lens is money saving. Mutation save costs
We think day and night optical scopes are the best scope to work with a thermal scout. Thermal scopes are powerful tools, but it has drawbacks, sometimes thermal scope only could mis-identify the target, even mistaken human as animals. An optical scope work with a thermal scout woud correct this drawback, it will never mis-indentify a human for a animal, this save quite a lot of cost, because optical scopes are cheaper.
In low light conditions, optical scopes also has drawbacks in indentifying target in bushes, if it has a thermal lens, it would be a so helpful. To buy a thermal and optical scope means you need to sell the optical scope and buy a new thermal and optical scope, it's quite a sum of money. By adding on an external thermal lens, it turns into a Multispectral Digital Scope, save lots of money here

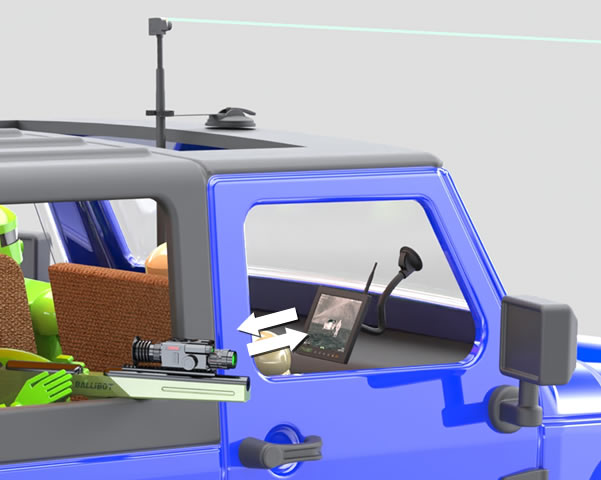

Interact With Thermal Scout
BALLIBOT SkoutKing series thermal scouts are very capable surveillance tools, it can survey thousands of acres each hour. In the darkness, even a target was found, locate it in the scopes are sometimes difficult. BalliMuta scope can recive coordinates from a SkoutKing, and the scope display can guide the movement of the scope untill it sees the target.
Sending Out ScopeCam Video
If you have partners to hunt together with you, anytime you can click to see the ScopeCam Video sending out from the BalliMuta scope can help a lot, first to see how effective was the shooting. Second to see where the target is located. third it is fun to share the experience
External Battery
All of BALLIBOT products will use almost the same type of regular extenal battery, BalliMuta uses one 21700 li-ion battery, because we understand the pains every user had experienced.
The 1st pain is the extra batteries of other brand scopes costs a small fortune to buy, the charging devices cost even more. Whereas regular batteries can be obtained at the frational costs, it will greatly lower the costs to use.
The 2nd pain is a night hunter always carry more than one kind of night vision gear, every gear has its own set of battery and charging device, a hunting trip has carry a heavy load of batteries and charging devices. While regular batteries can be mix used and mix charged with only one charger, it is possible to have more batteries standby for use, and no need to worry about every charger takes up a charging outlet.

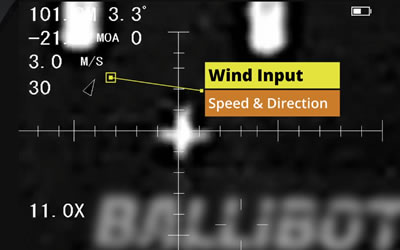

Quick Wind InputWind Arrow Indicator
Smooth and quick wind speed and direction input through the Adjusting Wheel together with the wind direction arrow indicator for windage ballsitics calculation.

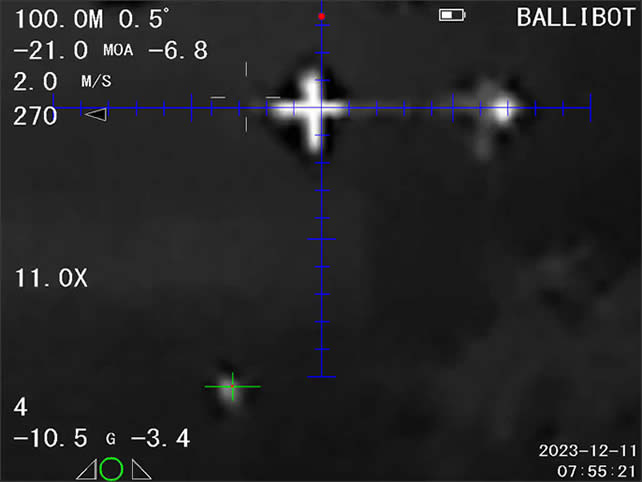

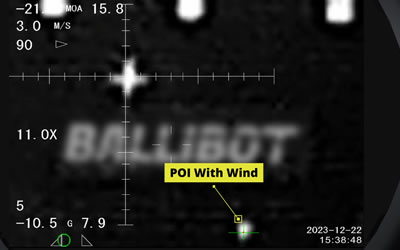

Dynamic Ballistic ReticleBoth on thermal & optical interface
At any level of the scope magnification, the Dynamic Crosshair immediately pinpoints the exact point of impact on the display when the elevation and windage is calculated, no time wasted on guessing around where to hit.
Hard Plastic CaseBetter Protection
Hard plastic box gives the BalliTherm thermal scope much better protection against dust and damage.
BalliBot Ballistic Calculator
Professional & not amateur4 DOF algorithm
Includes the bullet’s movement about its center of gravity and angle relative to its line of flight for greater accuracy.
3DOF & 4DOF Switchable
Advanced 4DOF mode for extreme long range projectiles, basic 3DOF mode for regular shooting and hunting.
5 gun profiles
It stores 5 gun and scope setup profiles for multi weapon system users, easy and convenient to switch devices.
G1 to G7 BC built-in
Ballistic Coefficient calculations of G1 standard and G7 long range bullet shapes, also the GA for airgun diabolo pellets.
BC Upload
Upload the Ballistic Coefficient input to all BalliBot hardwares such as laser rangefinders, avoid troublesome setups.
Hands free operation
Select a gun profile and upload to a Ballibot device once, then the phone is nolonger used for ballistic calculation.
BalliMuta Thermal and Optical Scope Specs
| EXTERNAL THERMAL | SENSOR PIXEL SIZE | 12μm |
| SENSOR RESOLUTION | 256×192 / 384×288 | THERMAL SENSITIVITY | <50mk |
| SENSOR FRAME RATE | 50hz | |
| OBJECTIVE FOCAL LENGTH | 25mm | |
| FOCUSING MECHANISM | MANUAL FOCUS | |
| OPTICAL | SENSOR TYPE | SONY MOONLIGHT DECTECTOR |
| SENSOR RESOLUTION | 4M PIXELS | |
| OBJECTIVE LENS | 35mm DIAMETER COATED LENS | |
| DIGITAL MAGNIFICATION | 16x | |
| OCULAR MAGNIFICATION | 15X | |
| OCULAR LENS DIAMETER< | 33mm | |
| EYE RELIEF | 48mm | |
| DISPLAY | 1024×768 OLEDoS | |
| FOCUSING MECHANISM | MANUAL FOCUS | |
| ELECTRONICS | LASER WAVE LENGTH | 905nm |
| RANGEFINDER RANGE | 8~1000m | |
| BATTERY | 21700 LI-ION | |
| TRIGGER VIDEO RECORDING | YES | |
| RECORDING RESOLUTION | 2160 x 1520 | |
| BLUETOOTH CONNECTION | YES | |
| BUILT-IN WIFI | YES | BALLISTICS | APP GUN PROFILE UPLOAD | YES |
| DYNAMIC RETICLE | YES | |
| WIND SPPED INPUT | YES | |
| WIND DIRECTION INPUT | YES | |
| LEVEL BUBBLE | YES | |
| BALLISTICS RESULTS | YES | |
| RETICLE CALCULATION | YES | |
| STRUCTURE | WATERPROOFING | IPX-3 |
| WEIGHT 35mm 50mm 75mm |
910g 880g 960g |
|
| DIMENSIONS 35mm 50mm 75mm |
350 x 76 x 82(mm) 350 x 76 x 82(mm) 376 x 76 x 97(mm) |
